6 Flow-Through Sensor Internal TPMS Kit for Tractors w/Super Singles
Monitor up to 4 different trailers with this 507 Series 6 Internal Sensor Kit. Get accurate readings and real time display of tire pressure and temperatures.
Features
- 6 Internal Flow-through Sensors
- Audible Alarms and Visual Alerts
- Water-resistant Sensors
- Monitors Tire Pressure & Temperature
- 507 Series Internal Sensor
Other Features
- Easy Installation, Light, and Compact
- Accurate pressure readings
- Sealed batteries (Not user replaceable)
- Includes a repeater to maximize the performance of the system
- User adjustable high and low-pressure alarm levels
- Pressure range of 0 to 218 pounds
- Real time display of tire pressure and temperatures
- Monitor up to 110 tires
- 14 in the power position
- 4 trailers at 24 tires each
- Display can monitor up to 4 trailers
Monitor Features:
- Large display
- Contains built in rechargeable lithium battery and DC adaptor which fits into any cigarette outlet
- Automatic activation when vehicle is in motion
- Adaptive monitor lighting
- Programmable high and low pressure alarm thresholds
- Customizable to specific requirements of tires
- Programmable high temperature alarm thresholds
- customizable to specific requirements of tires
- Visual warning lights and audible alarms when temperature and pressure thresholds are exceeded.
- Pressure unit selectable: PSI, BAR, Kpa, Kgf/cm2
- Temperature unit selectable: °C, °F
- Can read trailers in:
- Tow
- Vehicles in tow
- Any combination of resulting in maximum of 22 tires in one contiguous transport vessel
- The range is upwards of 60 linear feet from tire to monitor. Even farther with the addition of the easy to install repeater.
- Tire pressure and temperature readings are displated simultaneously for quick access to the data.
- Tire pressure and temperature setting can be configured "per axle" in that the tires on each axle and be read and programmed for individual readings.
- Monitor select or drop vehicles with a single push of a button
- 2 mounting options
- Dimensions:
- 3.5" Diagonal (versus our old model at 2.5")
- 4.6" Wide
- 2.99" Tall
- 1.06" Deep
- 4.4 ounces

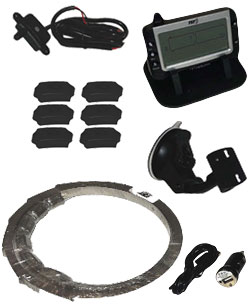

Includes
- 6 Tire Sensors
- 6 Inner Rim Bands
- Monitor
- Numbered Sensor-Position Stickers
- Additional Air-tight
- Rubber Display Mount
- Suction Cup Display Mount
- Long Antenna
- Trailer Exchange Repeater
- USB and 12V Charging Capabilities
- Detailed User Manual
